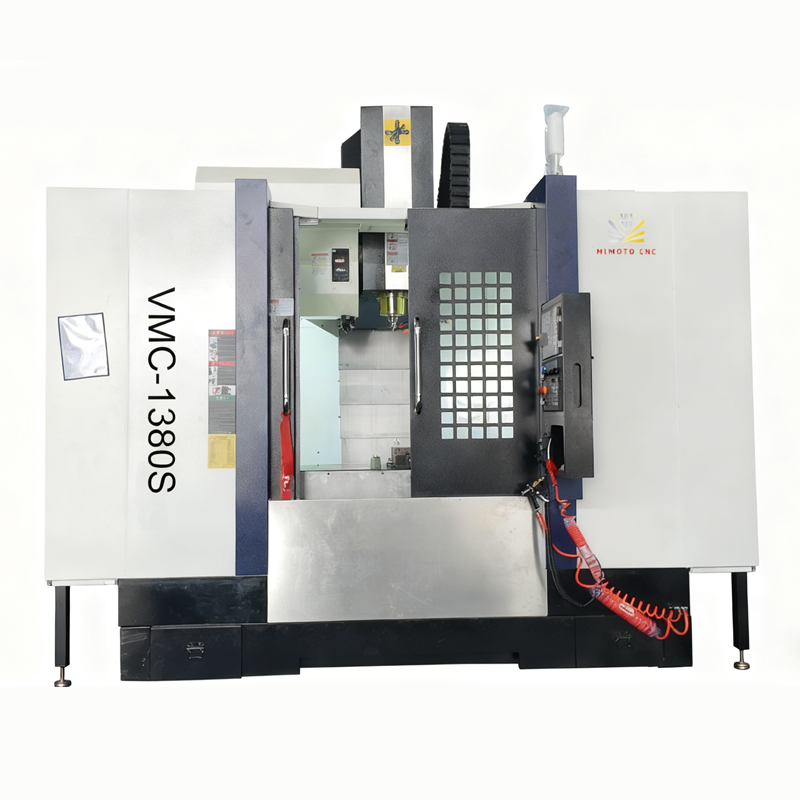

MIMOTO CNC V1380 Vertical Machining Center
MIMOTO CNC V1380 Vertical Machining Center - Image 2
MIMOTO CNC V1380 Vertical Machining Center - Image 3
MIMOTO CNC V1380 Vertical Machining Center - Image 4

MIMOTO CNC V1380 Vertical Machining Center

100% Brand new machine with a 12-month warranty.

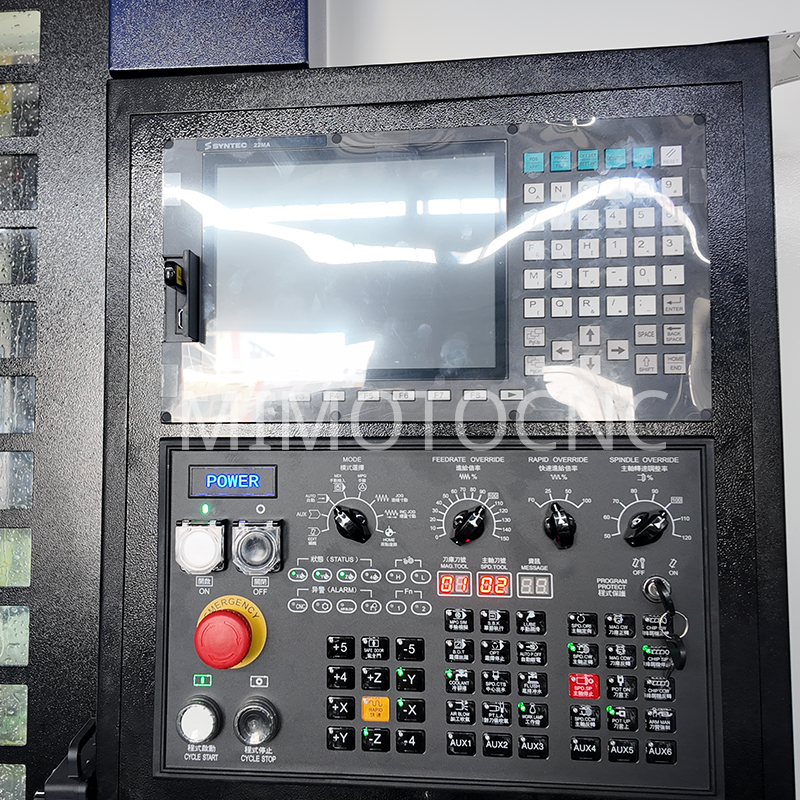

🔸Control system: FANUC/Mitsubishi/Siemens/GSK

🔸Table size: 1500x800mm

🔸Travel: 1300x800x750 mm.

🔸Spindle speed: 12000 rpm.

🔸Spindle Taper:BT40-150

🔸Year of manufacture: 2025

Support customization

The V1380 Vertical Machining Center is widely used in

mold making automotive components medical instruments aerospace parts

precision hardware industries delivering stable performance for both mass production

high precision machining

Category:

Description

Item Specification
Worktable Size (mm) 800×1500
X-axis Travel (mm) 1300
Y-axis Travel (mm) 800
Z-axis Travel (mm) 750 (MAX 770)
Spindle Nose to Table Distance (mm) 175–925
Spindle Center to Column Surface (mm) 880
Worktable T-slot (Width × No. of Slots × Distance) 18×3×120+100
Spindle Taper (Type/Installation Size) BT40-150
Spindle Speed (rpm) 12000
X/Y/Z Ballscrew Specifications 5010
X-axis Linear Guideway RGW45H/P 3R (Roller)
Y-axis Linear Guideway RGW45H/P 2R (Roller)
Z-axis Linear Guideway RGW45H/P 3R (Roller)
X/Y/Z Rapid Feed Rate (m/min) 24/24/24
Max Loading Capacity (kg) 1000
