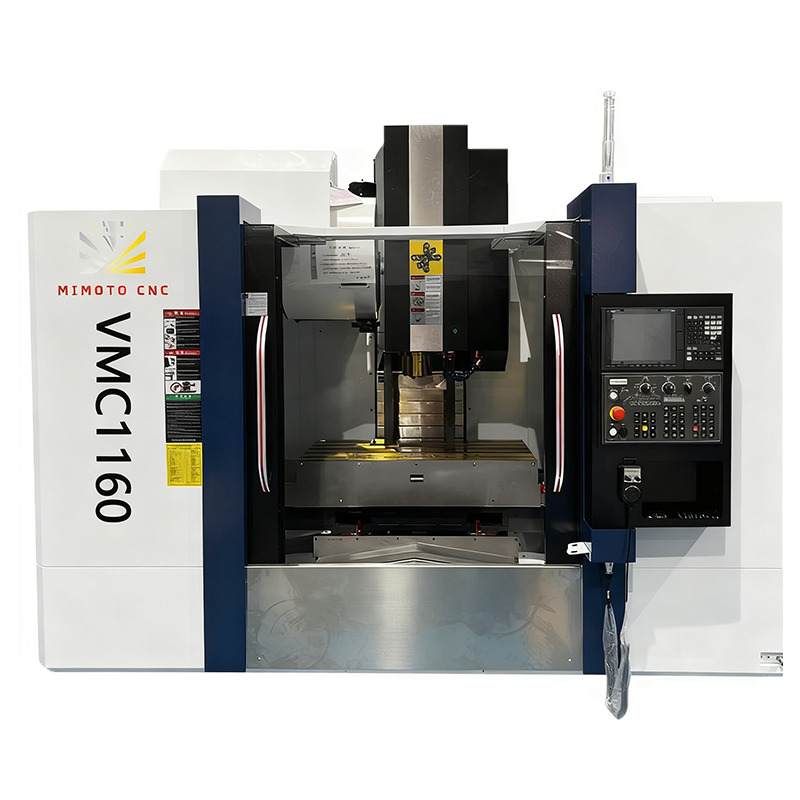

MIMOTO CNC V1160 Vertical Machining Center
MIMOTO CNC V1160 Vertical Machining Center - Image 2
MIMOTO CNC V1160 Vertical Machining Center - Image 3
MIMOTO CNC V1160 Vertical Machining Center - Image 4

MIMOTO CNC V1160 Vertical Machining Center

100% brand new machine with a 12-month warranty.

🔸Control system: FANUC/Mitsubishi/Siemens/GSK

🔸Table size: 1200x600mm

🔸Travel: 1100x600x600 mm.

🔸Spindle speed: 12000 rpm.

🔸Spindle Taper:BT40-150

🔸Year of manufacture: 2025

Support customization

The VMC1160 is widely used in:

  • Mold making (plastic molds, die-casting molds)

  • Automotive industry (engine parts, precision components)

  • Aerospace components

  • Medical device manufacturing

  • General precision metal machining

Category:

Description

Item Specification
System Mitsubishi/Fanuc/Syntec
Table size (mm) 1200*600
X-axis stroke(mm) 1100
Y-axis stroke(mm) 600
Z-axis stroke(mm) 600
Table to Spindle Nose (mm) 120-720
Spindle Center to Z-axis Rail End (mm) 650
T-slots on Worktable 18-5*100
Spindle Taper (Model/Installation Size) BT40-150
RPM(r/min) Direct 12000
X/Y/Z-axis Ball Screw Specifications 4012
X-axis Linear Guide Specifications RGH45H/P 3R (Roller Linear Guide)
Y-axis Linear Guide Specifications RGH45H/P 2R (Roller Linear Guide)
Z-axis Linear Guide Specifications RGH45H/P 3R (Roller Linear Guide)
X/Y/Z-axis Rapid Traverse Rate (m/min) 30/30/24
Maximum Load Capacity (kg) 800
 Positioning Accuracy:（X/Y/Z) ±0.008 / 300 mm
X/Y/Z Repeatability: ±0.005 mm
Machine Weight: Approx. 6000 kg
Floor Space (L × W): 3150 × 3000 mm
Machine Height: 2600 mm (Min)
