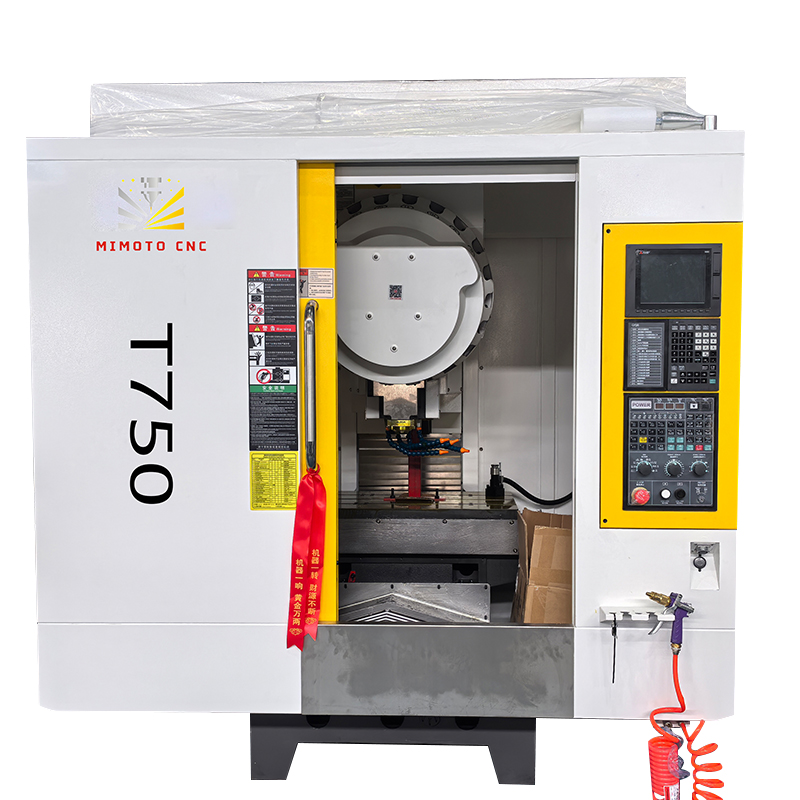

MIMOTO CNC T750S Drilling and Tapping Machine
MIMOTO CNC T750S Drilling and Tapping Machine - Image 2
MIMOTO CNC T750S Drilling and Tapping Machine - Image 3
MIMOTO CNC T750S Drilling and Tapping Machine - Image 4

MIMOTO CNC T750S Drilling and Tapping Machine

100% Brand new machine with a 12-month warranty.

🔸 Control system: Fanuc / Mitsubishi / Siemens /GSK
🔸 Table size: 800×420 mm
🔸 Travel (X/Y/Z): 750×420×330 mm
🔸 Spindle speed: 20000 rpm
🔸 Spindle taper: BT30
🔸 Year of manufacture: 2025

Support customization

The T750 Drilling & Tapping Center is built for high-speed, high-precision machining of aluminum parts, 3C products, and precision molds.
With a rigid structure, fast tool change, and stable performance, it ensures excellent productivity for mass production and fine component processing.

Category:

Description

Item Specification
System Mitsubishi/Fanuc/Siemens
Worktable Size (mm) 800 × 450
X-axis Travel (mm) 700
Y-axis Travel (mm) 500
Z-axis Travel (mm) 350
Spindle Nose to Table Surface (mm) 120–470
Spindle Center to Z-axis Guideway End (mm) 550
T-slot on Table (Width × No. × Pitch) 14 mm × 3 × 125 mm
Spindle Taper (Model / Mounting Size) BT30 / Ø100
Spindle Speed (r/min) Direct Drive 20000
X-axis Ballscrew Spec Ø28 × 16
Y/Z-axis Ballscrew Spec Ø32 × 16
X/Y-axis Guideway Spec HGH30H/P 2R
Z-axis Guideway Spec RGH30H/P 2R
X/Y/Z Rapid Traverse Rate (m/min) 48
Max Load (kg) 200
X Positioning Accuracy: ±0.008 / 300 mm
Y Positioning Accuracy: ±0.008 / 300 mm
Z Positioning Accuracy: ±0.008 / 300 mm
X/Y/Z Repeatability: ±0.005 mm
