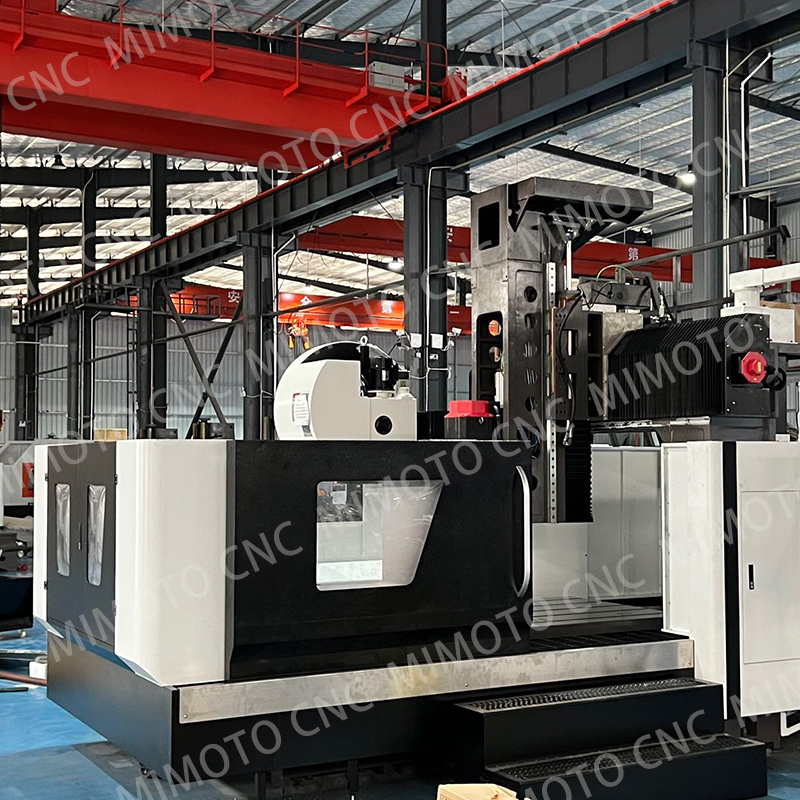

MIMOTO CNC LM2518A Gantry Machining Center

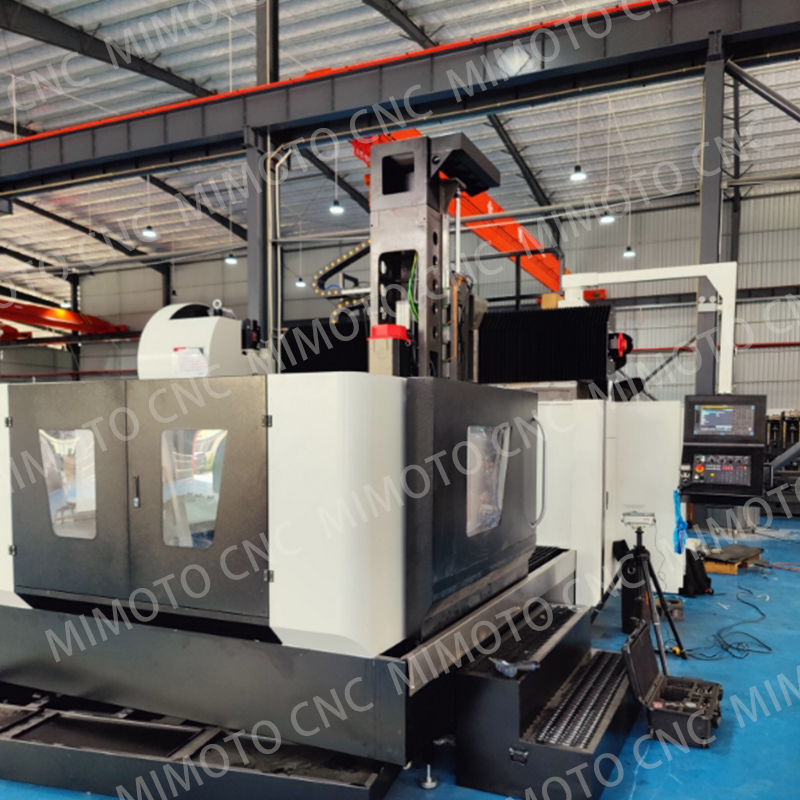

MIMOTO CNC LM2518A Gantry Machining Center - Image 2

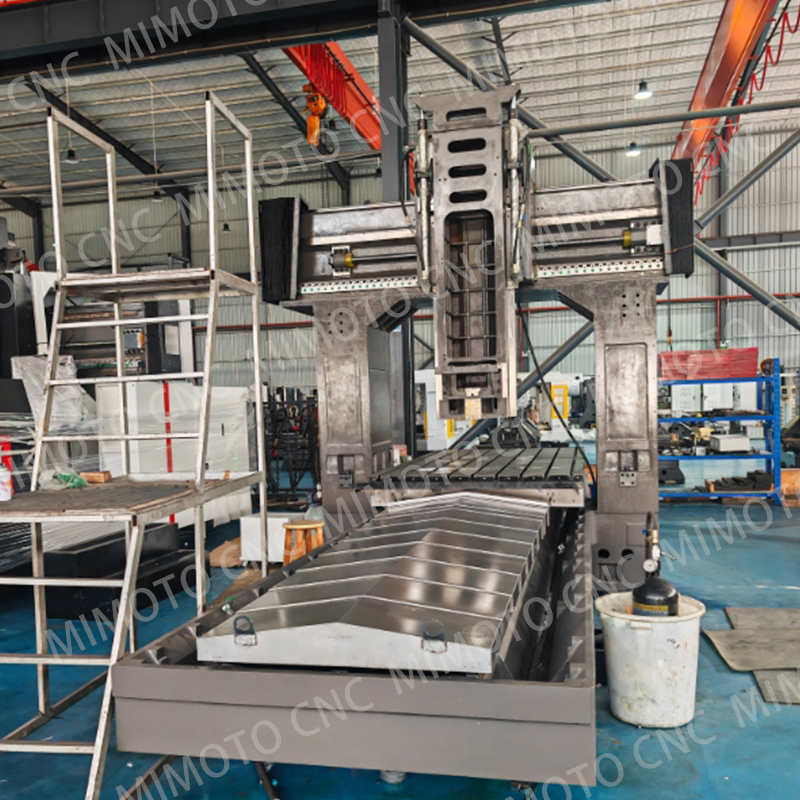

MIMOTO CNC LM2518A Gantry Machining Center - Image 3

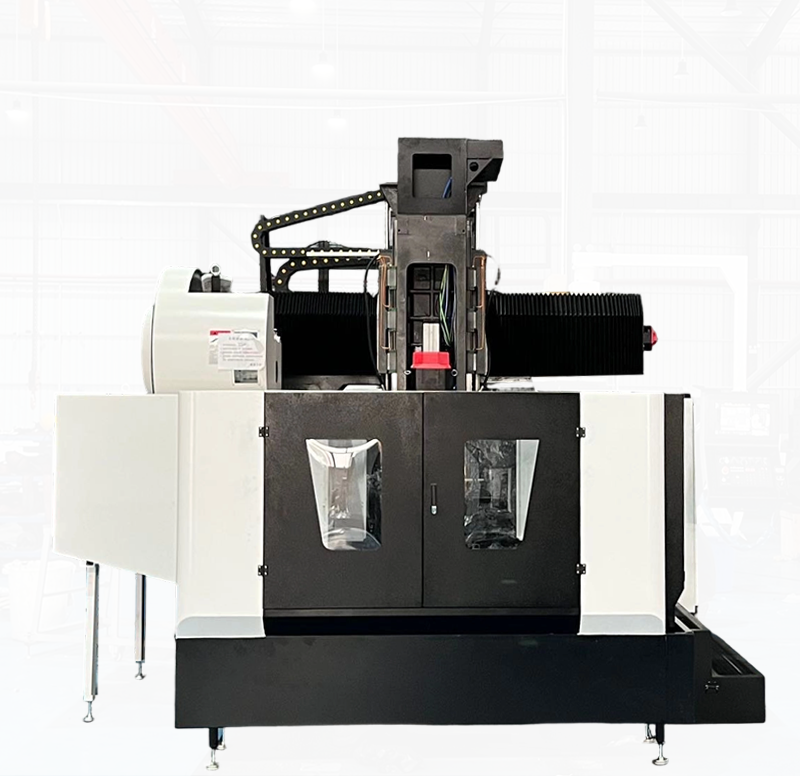

MIMOTO CNC LM2518A Gantry Machining Center - Image 4

MIMOTO CNC LM2518A Gantry Machining Center

100% Brand new machine with a 12-month warranty.

🔸 Control system: Fanuc / Mitsubishi / Siemens / Syntec
🔸 Table size: 2600×1800 mm
🔸 Travel (X/Y/Z): 2500×1800×800 mm
🔸 Spindle speed: 6000-12000 rpm
🔸 Spindle taper: BT50
🔸 Year of manufacture: 2025

Support customization

The 2518A Gantry Machining Center is engineered for large-size mold, automotive, and aerospace parts machining.
With a heavy-duty structure, strong cutting capability, and excellent stability, it provides high precision and efficiency for large workpiece processing and heavy cutting applications.

Category:

Description

Item Specification
Table Size (mm) 1600 x 2700
X-Axis Travel (mm) 2500
Y-Axis Travel (mm) 1900 (Tool change travel: 2000)
Z-Axis Travel (mm) 800
Distance from Spindle Nose to Table (mm) 200-1000
Gantry Width (mm) 1900
Gantry Height (mm) 1080
Table T-slot (Qty x Width x Pitch) 9-22 x 180
Spindle Taper (Model/Install Size) BT50 / 190
Spindle Speed (rpm) 6000 -12000
X/Y/Z Ball Screw Specs 6312 / 5010 / 5010
X-Axis Guideway 55 / 8 Roller
Y-Axis Guideway 55 / 4 Roller
Z-Axis Guideway Box Way
X/Y/Z Rapid Feed Rate (m/min) 15
X/Y/Z Cutting Feed Rate (m/min) 10
Max Load Capacity (kg) 5500
