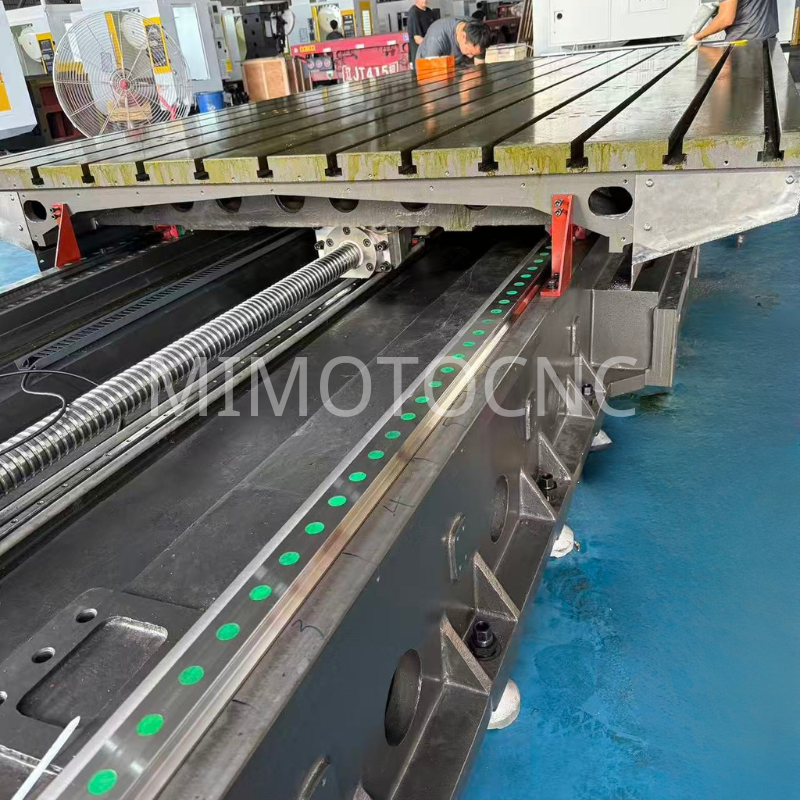

MIMOTO CNC LM2216 Gantry Machining Center

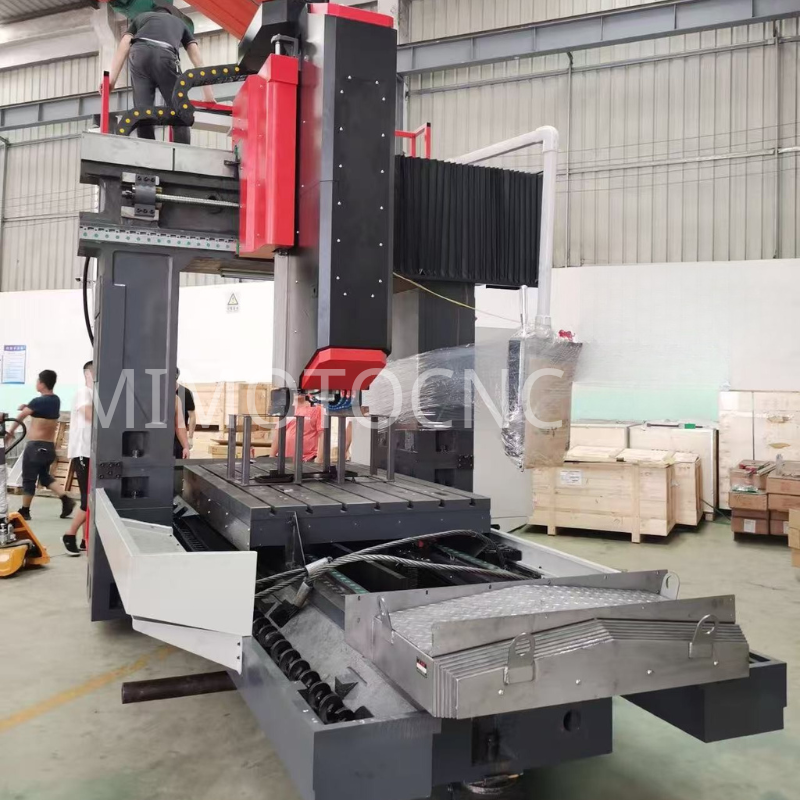

MIMOTO CNC LM2216 Gantry Machining Center - Image 2

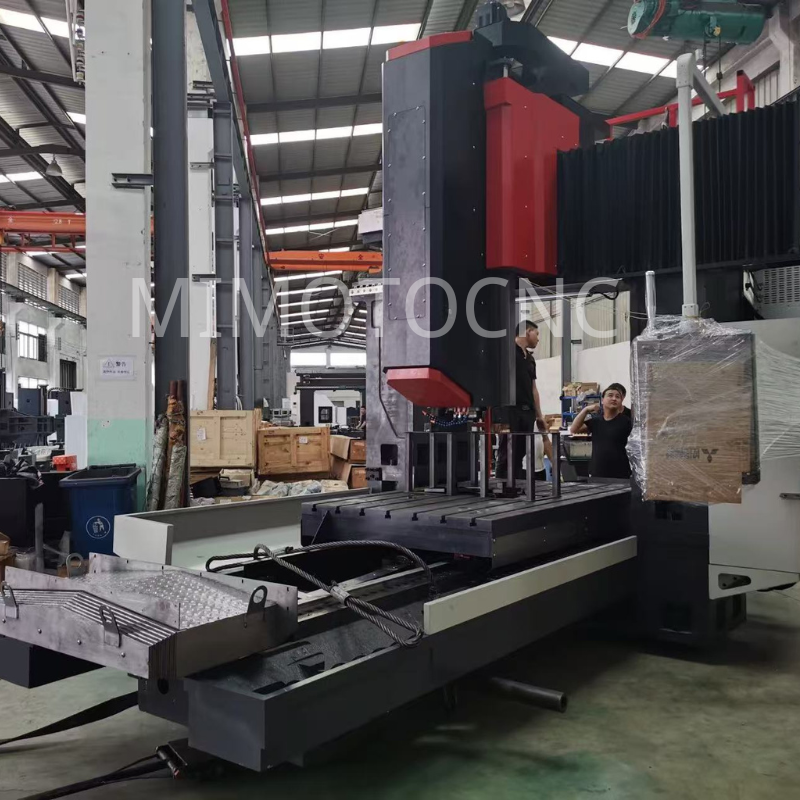

MIMOTO CNC LM2216 Gantry Machining Center - Image 3

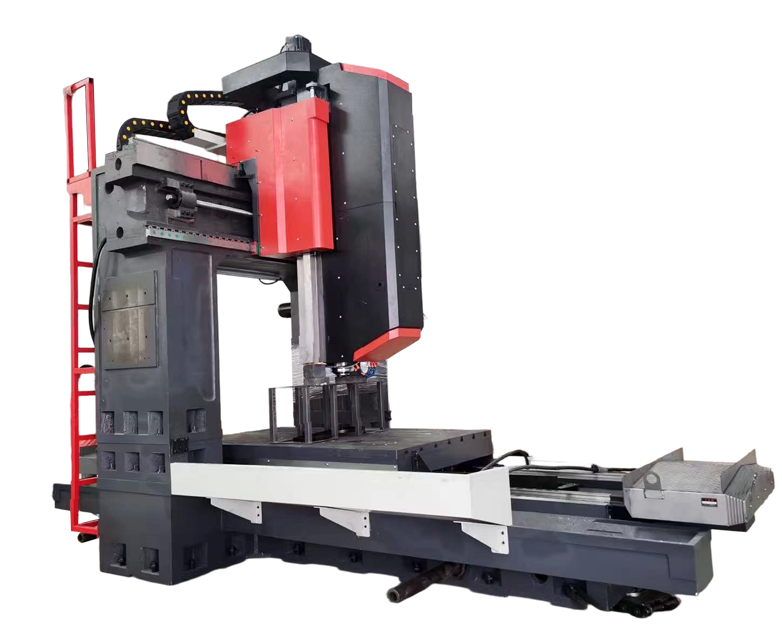

MIMOTO CNC LM2216 Gantry Machining Center - Image 4

MIMOTO CNC LM2216 Gantry Machining Center

100% Brand new machine with a 12-month warranty.

🔸 Control system: Fanuc / Mitsubishi / Siemens / Syntec
🔸 Table size: 2200×1300 mm
🔸 Travel (X/Y/Z): 2200×1800×800 mm
🔸 Spindle speed: 6000rpm-12000 rpm
🔸 Spindle taper: BT40-50
🔸 Year of manufacture: 2025

Support customization

The 2216 Gantry Machining Center is engineered for large-size mold, automotive, and aerospace parts machining.
With a heavy-duty structure, strong cutting capability, and excellent stability, it provides high precision and efficiency for large workpiece processing and heavy cutting applications.

Category:

Description

Item Specification
Control System Mitsubishi / FANUC / SYNTEC
X / Y / Z Axis Travel (mm) 2200 / 1800 / 800 (Max Y1900)
Spindle Nose to Table Surface Distance (mm) 175–975 (Max 1075)
Gantry Width (mm) 1650
Table Size (L × W) (mm) 2200 × 1300
Table Load Capacity (kg) 3000
T-slot Size (Width × Number × Distance) (mm) 22 × 7 × 180
Spindle Speed (rpm) 6000-12000
Spindle Taper (mm) BT50 – 190
Ball Screw (X/Y/Z) (mm) X 6310 / Y, Z 5010
X-Axis Linear Scale RGH45C / P
Y-Axis Linear Scale RGH45C / A / P
Z-Axis Linear Scale RGH55CA / P
Rapid Feed (X/Y/Z) (m/min) 24 / 24 / 16
Spindle Motor Power (kW) 18.5 / 22
3-Axis Servo Motors (kW) 4.5 / 4.5 / 4.5
Position Accuracy (mm) ±0.008 / 300
Repeatability (mm) ±0.003
Machine Dimensions (L × W × H) (mm) 6500 × 4100 × 4200
Machine Weight (kg) 17,000
