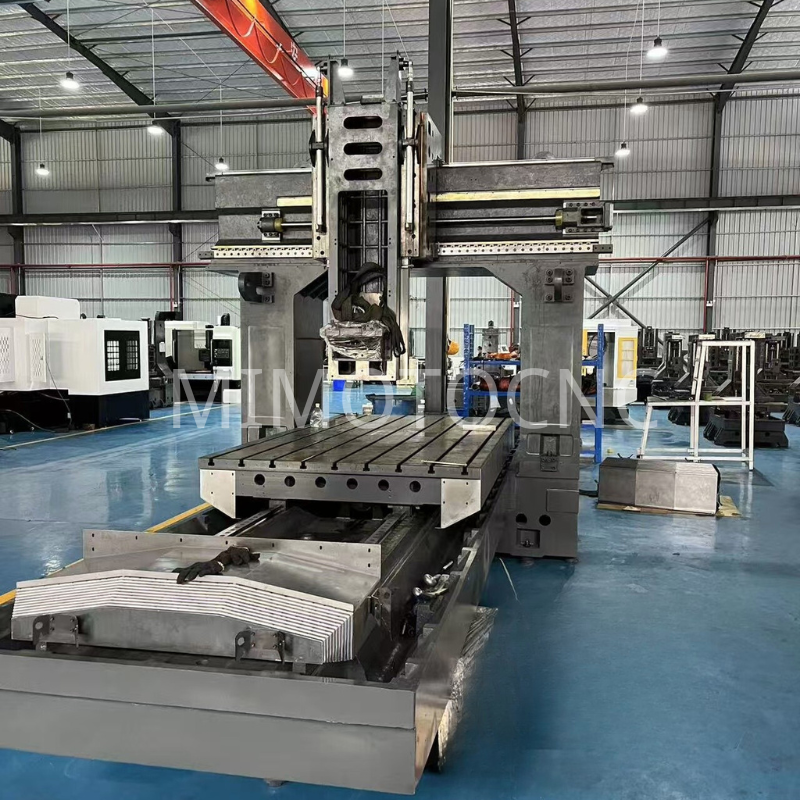

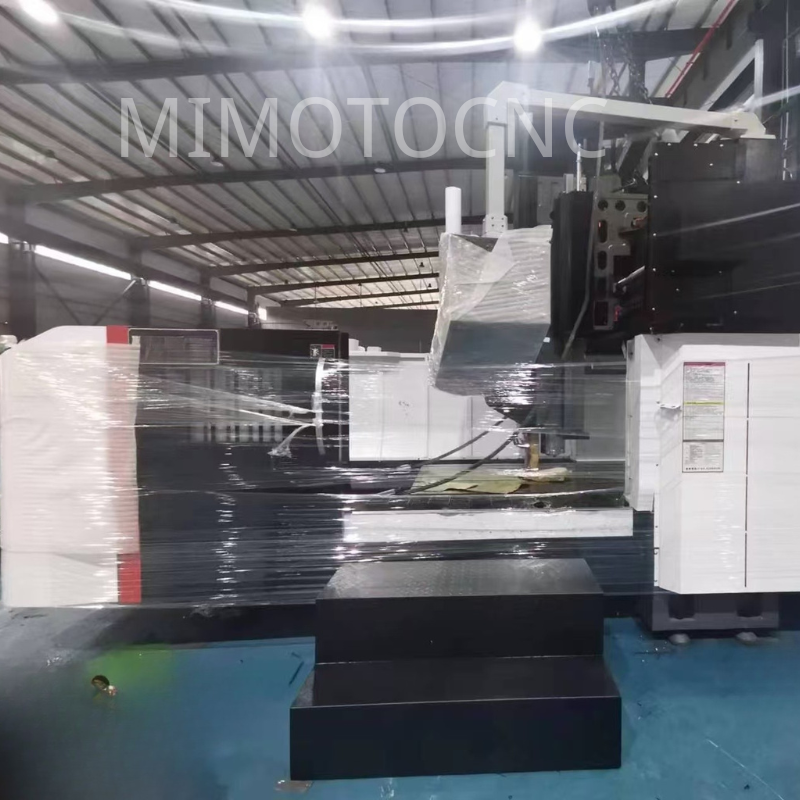

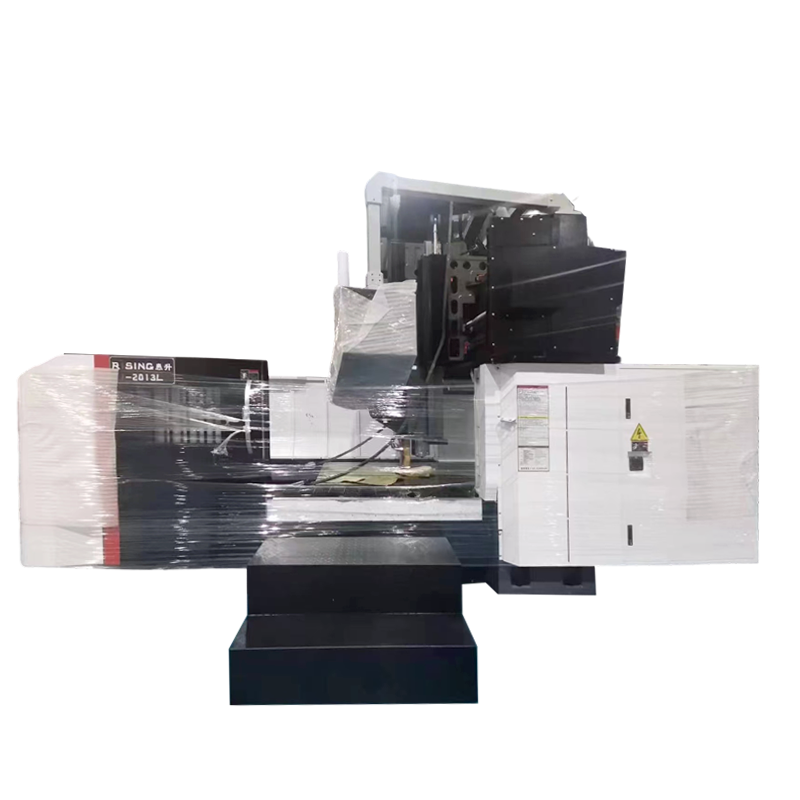

MIMOTO CNC LM2014A Gantry Machining Center
MIMOTO CNC LM2014A Gantry Machining Center - Image 2
MIMOTO CNC LM2014A Gantry Machining Center - Image 3
MIMOTO CNC LM2014A Gantry Machining Center - Image 4

MIMOTO CNC LM2014A Gantry Machining Center

100% Brand new machine with a 12-month warranty.

🔸 Control system: Fanuc / Mitsubishi / Siemens / Syntec
🔸 Table size: 2100×1200 mm
🔸 Travel (X/Y/Z): 2000×1500×800 mm
🔸 Spindle speed: 6000rpm-12000 rpm
🔸 Spindle taper: BT40-50
🔸 Year of manufacture: 2025

Support customization

The 2014A Gantry Machining Center is engineered for large-size mold, automotive, and aerospace parts machining.
With a heavy-duty structure, strong cutting capability, and excellent stability, it provides high precision and efficiency for large workpiece processing and heavy cutting applications.

Category:

Description

Item Specification
System Mitsubishi/Fanuc/Syntec/GSK
Table Size (mm) 2100 X 1200
X-axis Travel (mm) 2000  (Max 2200 mm)
Y-axis Travel (mm) 1500 (including tool change stroke 1600 )
Z-axis Travel (mm) 800
Distance from Spindle Nose to Table Surface(mm) 1500 / 1030
Spindle Center to Column Guideway (mm) 150 – 950
Table Max Load (kg) 3500 kg
T-Slot (No. × Width × Pitch) (mm) 22 × 7 × 170 mm
Spindle Speed rpm 6000 -12000
Spindle Taper BT50-190
Rapid Feed (X/Y/Z) 15 / 15 / 15 m/min
Cutting Feed 10 m/min
Tool Magazine Capacity 22 tools
Hydraulic Unit Pressure 38 / 30 / 30 (brake)
Position Accuracy ±0.008 / 300 mm
Repeatability ±0.005 mm
Machine Dimension (L × W × H) 6300 × 4300 × 3500 mm
Machine Weight 16000 kg
