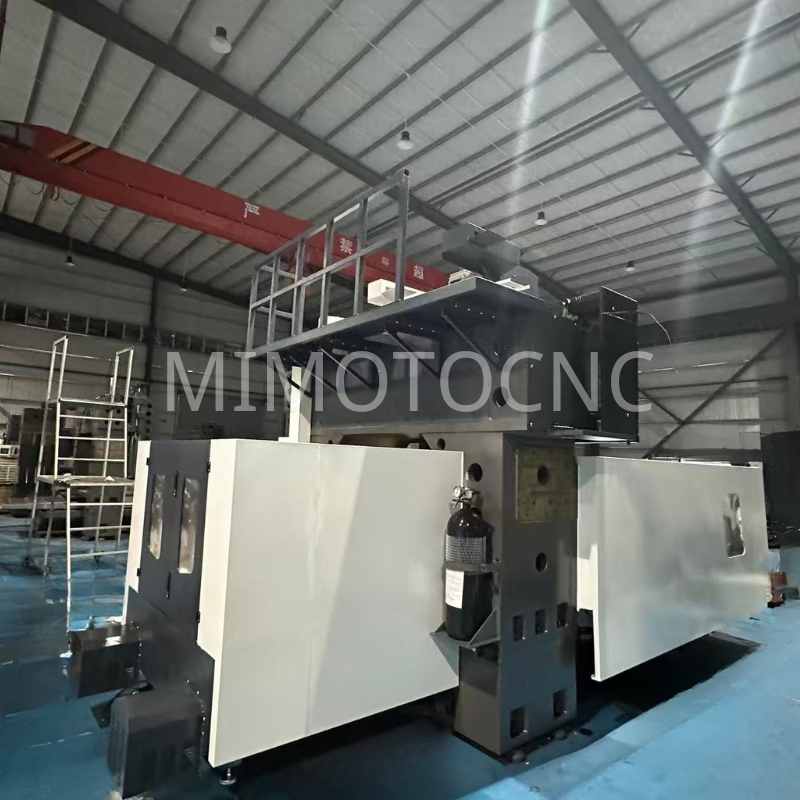

MIMOTO CNC LM1614 Gantry Machining Center

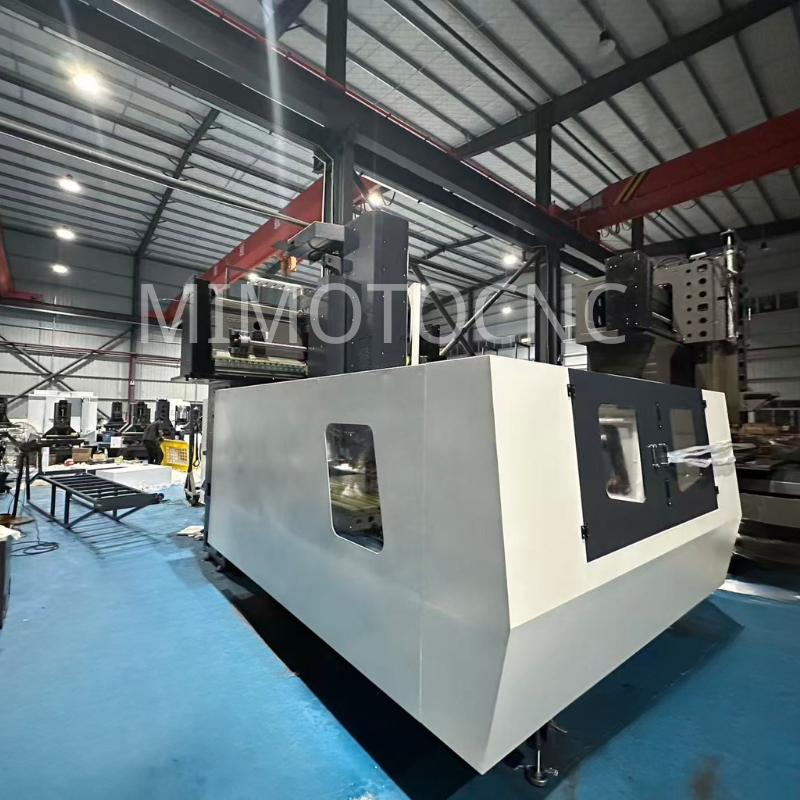

MIMOTO CNC LM1614 Gantry Machining Center - Image 2

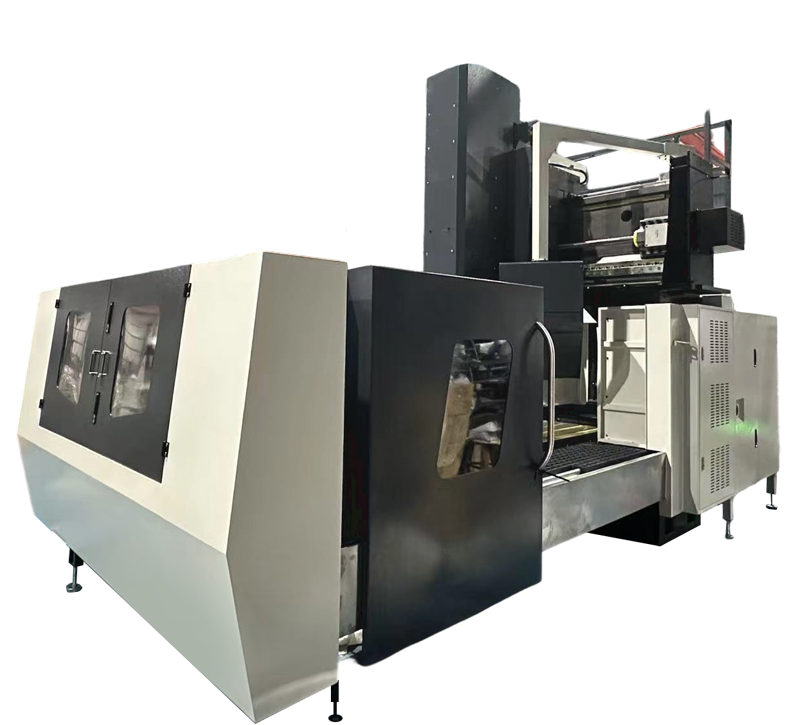

MIMOTO CNC LM1614 Gantry Machining Center - Image 3

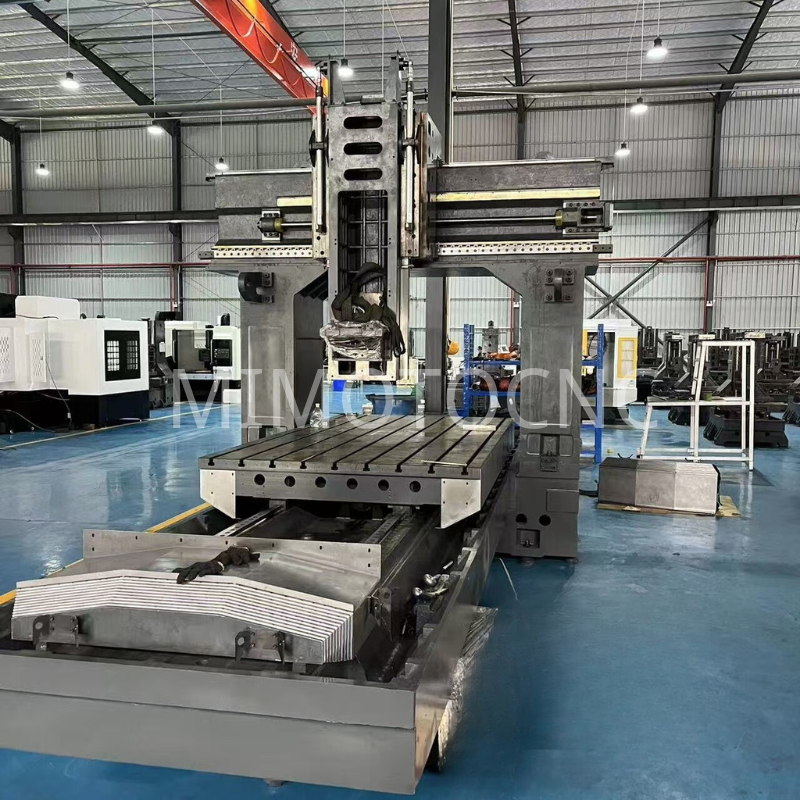

MIMOTO CNC LM1614 Gantry Machining Center - Image 4

MIMOTO CNC LM1614 Gantry Machining Center

100% Brand new machine with a 12-month warranty.

🔸 Control system: Fanuc / Mitsubishi / Siemens / Syntec
🔸 Table size: 1700×1000 mm
🔸 Travel (X/Y/Z): 1600×1400×700 mm
🔸 Spindle speed: 6000rpm-12000 rpm
🔸 Spindle taper: BT40-50
🔸 Year of manufacture: 2025

Support customization

The 1614 Gantry Machining Center is engineered for large-size mold, automotive, and aerospace parts machining.
With a heavy-duty structure, strong cutting capability, and excellent stability, it provides high precision and efficiency for large workpiece processing and heavy cutting applications.

Category:

Description

Item Specification
System Mitsubishi / FANUC / Syntec / GSK
Table Size (mm) 1700 × 1200
X-axis Travel (mm) 1600
Y-axis Travel (mm) 1400
Z-axis Travel (mm) 700
Distance from Spindle End Face to Countertop (BT40) 162–862
Table Max Load (kg) 2500
T-Slot (No. × Width × Pitch) (mm) 24 × 5 × 220
Spindle Speed (rpm) 6000–12000 (belt)
Spindle Taper BT50–190
Rapid Feed (X/Y/Z) 24 / 24 / 16 m/min
Cutting Feed (X/Y/Z) 10 m/min
Tool Magazine Capacity 22 Tools
Hydraulic Unit Pressure 38 / 30 / 30 (brake)
Position Accuracy ±0.008 / 300 mm
Repeatability ±0.005 mm
Machine Dimension (L × W × H) 5630 × 4570 × 4050 mm
Machine Weight (kg) 14000
