MIMOTO CNC 5 Axis Rotary Table

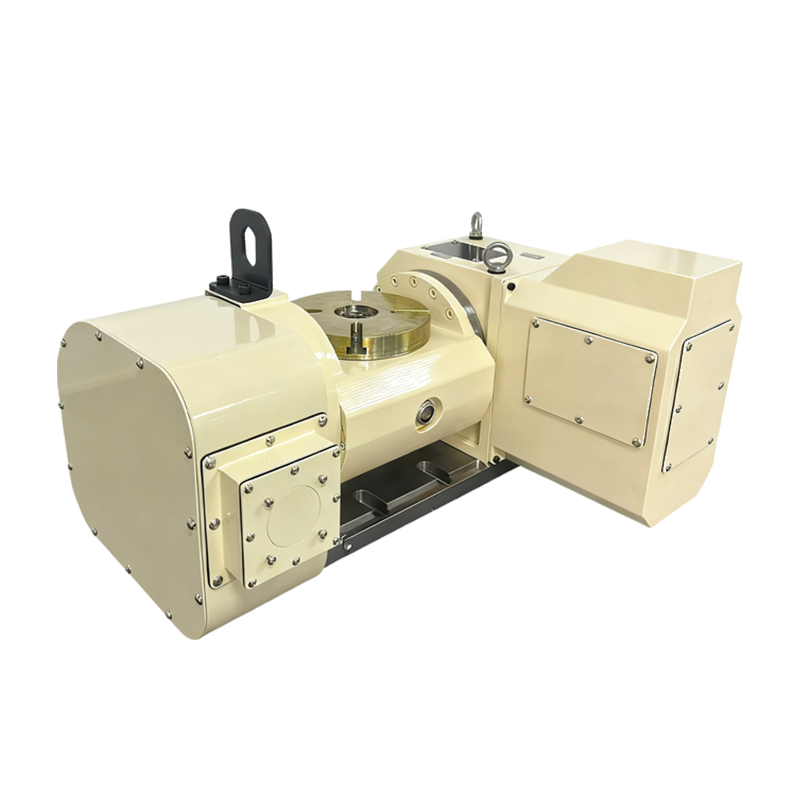

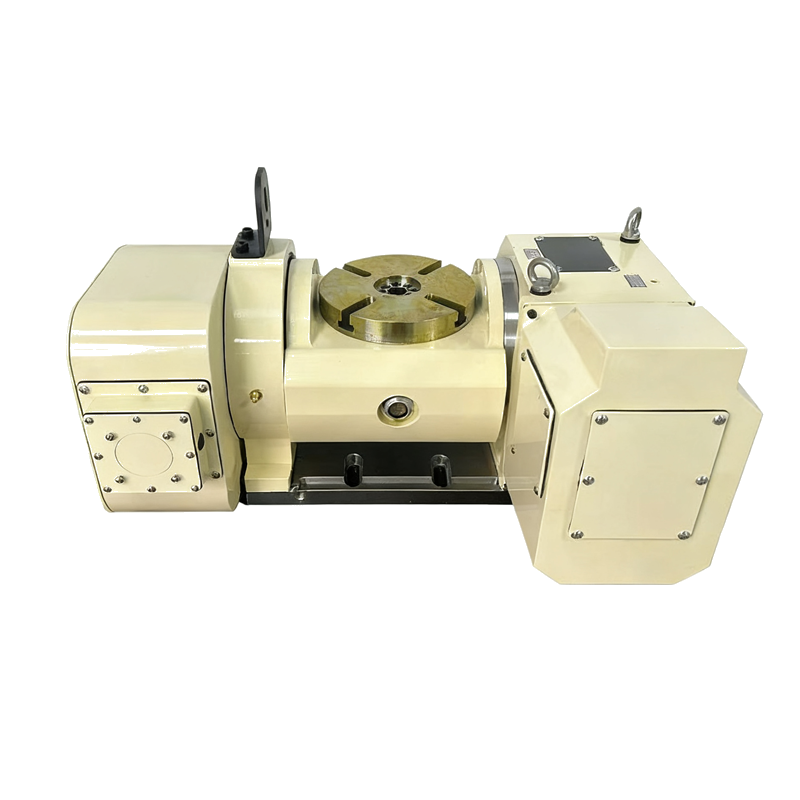

5 Axis Rotary Table for CNC Machining Center

5 axis rotary table is designed for high precision multi-axis machining, enabling complex part processing in one setup.

Suitable for 4th & 5th axis CNC machining
High rigidity structure for stable cutting
High positioning accuracy and repeatability
Widely used in mold, aerospace, automotive and precision parts
Key Features:

High precision indexing and positioning

Compact design, easy integration with VMC

Strong clamping force for heavy cutting

Optional servo motor and controller compatibility

Description

Item	Specification
Worktable Size (mm)	170（210/255/320Sizes Available）
Worktable Center Height (mm)	212
Spindle Center Distance (mm)	22
Total height (mm)	261
Rotation Angle (deg) (Rotary Axis / Tilting Axis)	360 / -30 ~ 120
Minimum Indexing (deg) (Rotary Axis / Tilting Axis)	24 / 36
Minimum Setting Unit (deg) (Rotary Axis / Tilting Axis)	0.001 / 0.001
Indexing Accuracy (sec) (Rotary Axis / Tilting Axis)	±15 / ±20
Repeatability (sec) (rotation axis/tilt axis)	8/8
Air Pressure (MPa)	Air Pressure for Rotary Axis: 0.5MPa / Tilting Axis: 2MPa
Net Weight (Kg)	35
Allowable load-bearing (horizontal) (Kg)	60
Turntable net weight (Kg)	130
T-slot size of working plate (mm)	12H7
Motor (Optional)	FANUC β4 / Mitsubishi HG75 (Rotary / Tilting Axis)
Motor (Optional)	Fanuc / Mitsubishi / Syntec/GSK
